Air configuration

ACROSTATION

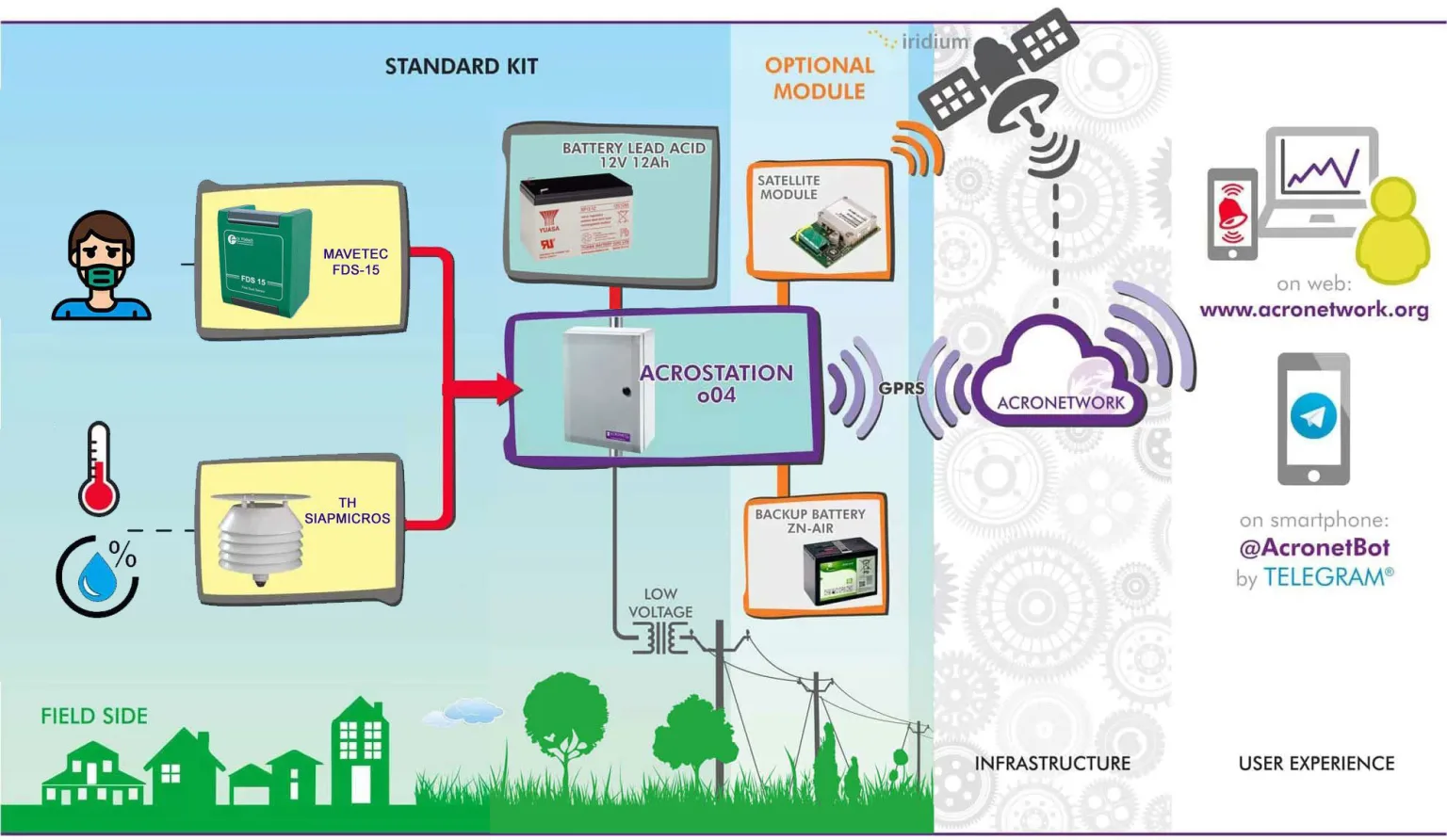

The ACROSTATION modular element is the container in which all the components necessary for the operation of the different configurations take their place. The outer casing is a watertight plastic box, equipped with an atmospheric pressure compensation device, a safety lock, and steel collars for attachment to the support pole. The inner compartment contains:

the ACROBOARDLOG electronic board that oversees all data collection operations from connected sensors, energy supply management and communications to and from the ACRONETWORK infrastructure
the ACROBOARDPANEL board which houses the commands for switching the station on/off and on which all cables from external sensors and power sources are routed
a buffer battery sized for the needs of each specific configuration and the internal wiring connecting the two boards

External power supply

External low voltage power supply required: 18-24 Vdc, 2 A, stabilised.
External low voltage power supply required: 12 Vdc, 2 A, stabilised.
(To be provided by the user or quoted separately on request.)

MAVETEC FDS15

The FDS 15 fine dust detector is an optical sensor for the continuous measurement and control of fine dust (PM10). An integrated pre-separator can optionally be used for the analysis of respirable particle fractions (PM2.5 -> EN 481 compliant). The determination of dust content in this device is based on the scattered light measurement method. The aspirated air is pre-heated to 50 °C. The measurement of the suctioned air contains the correct detection of ambient dust concentrations. The FDS 15 device is used for the measurement of fine dust and the prevention of health-related risks.

Application examples:

monitoring of particulate matter in production (laboratories, warehouses, etc.)
monitoring of ambient air quality in offices and public institutions (hospitals, schools, etc.)
ambient air quality monitoring
upgrading of weather stations

SIAP+MICROS t026

TTEPRH is a combined sensor for measuring temperature and air humidity. Temperature measurement is carried out through the use of a platinum Pt100 resistance thermometer with a response curve according to DIN 43760 Class 1/3 standard and 4-wire connection.

A DIY KIT is available for this configuration!

The ‘do-it-yourself kit’ contains all the materials and documentation necessary for you to build and install your own ACRONET monitoring station on site.

All you have to do is assemble the individual components and position them in place according to the specified fastening methods. For configurations connected to the infrastructure via a GPRS mobile network, simply insert a SIM card enabled for GPRS (2G) data traffic. From that moment on, all data collected and sent according to the set-up file will be transmitted to the infrastructure and made available on the ACRONETWORK.ORG portal.

Request documents

By filling out the form, you will receive both the firmware dedicated to this specific configuration and the basic implementation.

You can use the firmware to manage the electronic side of the devices, while the basic implementation is essential for the system to function.

The project documentation is available free of charge to anyone, provided that it is not resold commercially.
